Twin rudder wheel type AGV

Twin rudder wheel type AGV

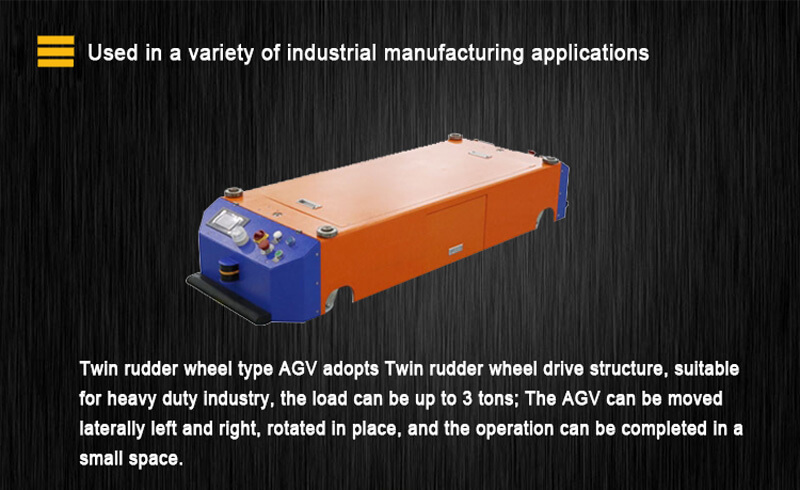

Twin rudder wheel type AGV adopts Twin rudder wheel drive structure, suitable for heavy duty industry, the load can be up to 3 tons; The AGV can be moved laterally left and right, rotated in place, and the operation can be completed in a small space.



Product Introduction

Twin rudder wheel type AGV adopts Twin rudder wheel drive structure, suitable for heavy duty industry, the load can be up to 3 tons; The AGV can be moved laterally left and right, rotated in place, and the operation can be completed in a small space.

Product Details

Product Paramete

Item Basic Parameters
Dimension L1550mm*W500mm*H300mm
Delivery method Latent traction
Navigation method Magnetic strip guidance
Drive mode Rudder wheel drive
Driving speed 0-35m/min
Moving functions Forward&Backward, Turn Left, Turn Right,Spin around,Left translation,right translation
Control unit PLC
Wireless network WIFI/RF network
Landmark type RFID
Stop Accuracy ±10mm
Maximum weight loading capacity 2500KG
Power supply mode DC24V,DC48v
Battery capacity 60AH
Duration ≥8h
Charging method Offline charging/Online charging
Operation Interface Touch screen
Safety prevention Roadblock detecting sensor+machianical bumper+emergency stop button
Error warning system Tricolor light+buzzer
Applied environment Indoor;temperature:0-50℃,humidity:60-80;gradient<2
