Single-way latent type AGV

Single-way latent type AGV

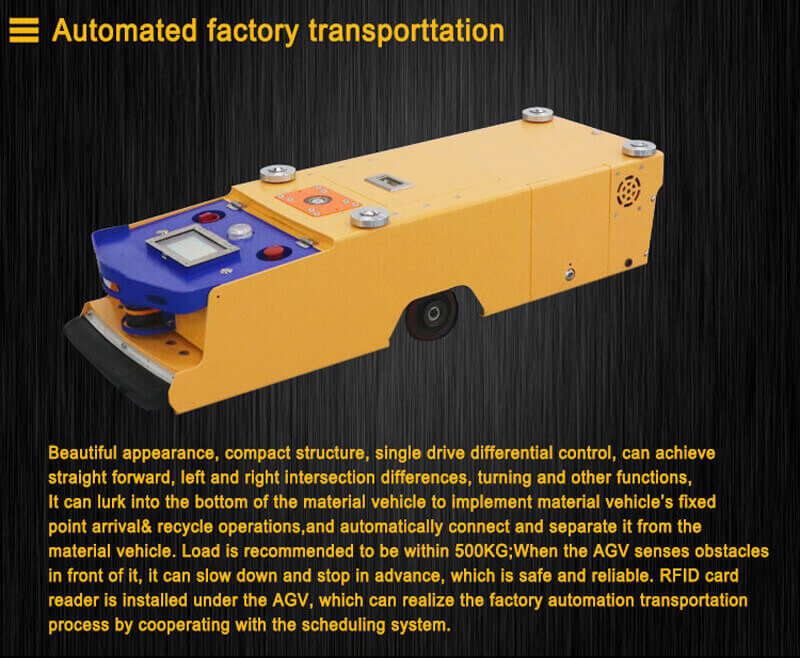

Single-way latent type AGV,it wildly uses in logistics distribution in manufacturing industry,This AGV has strong universality with low cost.It can automatically connect and separate it from the material vehicle.



Product Introduction

Single-way latent type AGV,it wildly uses in logistics distribution in manufacturing industry,This AGV has strong universality with low cost.It can automatically connect and separate it from the material vehicle.

Product Details

Product Paramete

Item Basic Parameters

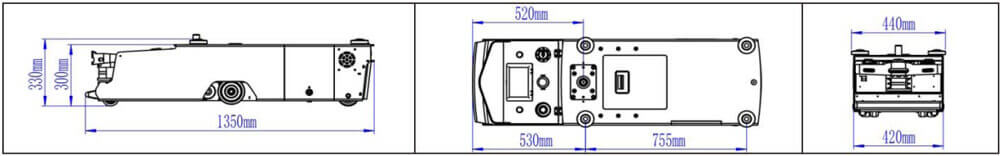

Dimension L1350mm*W420mm*H300mm
Delivery method Unidirectional latent traction
Navigation method Magnetic strip guidance
Drive mode Differential driving
Minimum turning radius 600mm
Driving speed 0-35m/min
Moving functions Move forward, turn left,turn right
Control unit PLC
Wireless network WIFI/RF network
Landmark type RFID
Stop Accuracy ±10mm
Maximum weight loading capacity 500KG
Power supply mode DC24V
Battery capacity 40AH~80AH
Duration ≥8h
Charging method Offline charging/Online charging
Operation Interface Touch screen
Safety prevention Roadblock detecting sensor+machianical bumper+emergency stop button
Error warning system Tricolor light+buzzer
Applied environment Indoor;temperature:0-50℃,humidity:60-80;gradient<2
