Single Drive dual-way latent type AGV

Single Drive dual-way latent type AGV






Product Introduction

Single Drive Dual – way latent type AGV is able to transport in dual-wany with low cost.This AGV can lurk into the bottom of the material vehicle and automatically connect separate it from the material vehicle.

Single Drive dual-way latent type AGV

Product Details

Single Drive dual-way latent type AGV Single Drive dual-way latent type AGV

Product Paramete

Item Basic Parameters

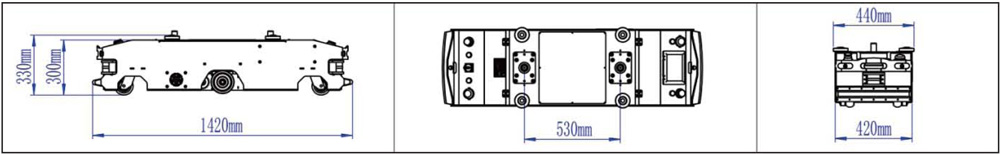

Dimension L1420mm*W420mm*H300mm
Delivery method Bidirectional latent traction
Navigation method Magnetic strip guidance
Drive mode Different driving
Minimum turning radius 600mm
Driving speed 0-35m/min
Moving functions Forward&Backward, Turn Left, Turn Right
Control unit PLC
Wireless network WIFI/RF network
Landmark type RFID
Stop Accuracy ±10mm
Maximum weight loading capacity 500KG
Power supply mode DC24V
Battery capacity 40AH~60AH
Duration ≥8h
Charging method Offline charging/Online charging
Operation Interface Touch screen
Safety prevention Roadblock detecting sensor+machianical bumper+emergency stop button
Error warning system Tricolor light+buzzer
Applied environment Indoor;temperature:0-50℃,humidity:60-80;gradient<2



Single Drive dual-way latent type AGV

Product Application

Single Drive dual-way latent type AGV Single Drive dual-way latent type AGV

Certificate

Single Drive dual-way latent type AGV
