Dual-drive bidirectional latent AGV

Dual-drive bidirectional latent AGV

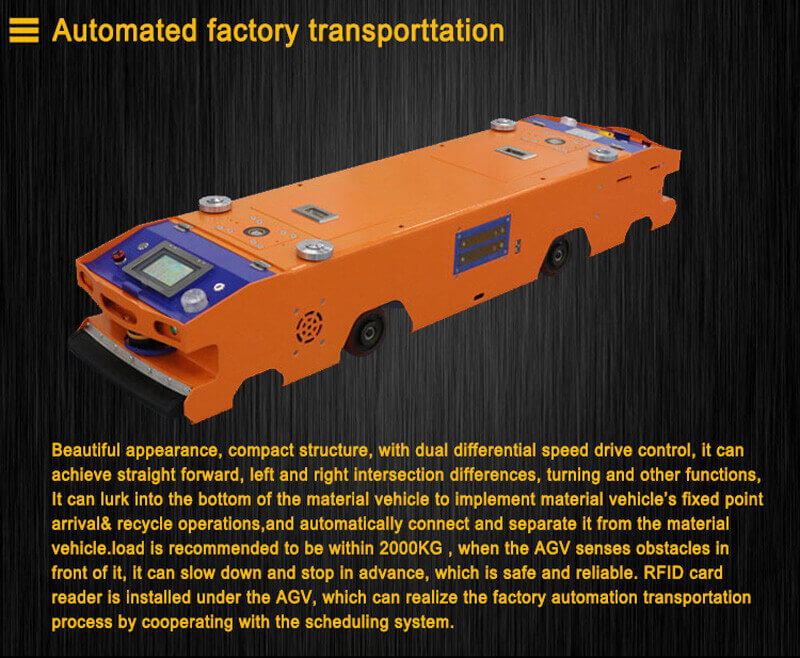

With dual differential speed drive structures,this AGV is able to move bidirectionally.Maximum traction capacity is 1.5T.This AGV can lurk into the bottom of the material vehicle to implement material vehicle’s fixed point arrival& recycle operations,and automatically connect and separate it from the material vehicle.



Product Introduction

With dual differential speed drive structures,this AGV is able to move bidirectionally.Maximum traction capacity is 1.5T.This AGV can lurk into the bottom of the material vehicle to implement material vehicle’s fixed point arrival& recycle operations,and automatically connect and separate it from the material vehicle.

Product Details

Product Paramete

Item Basic Parameters

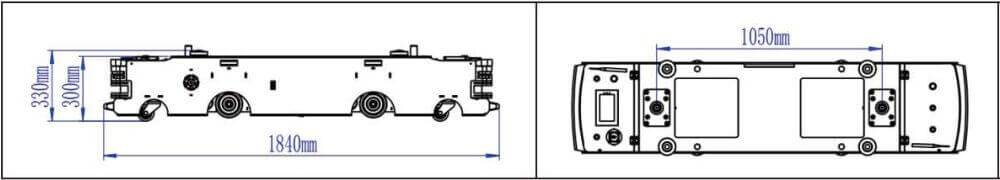

Dimension L1840mm*W420mm*H300mm
Delivery method Bidirectional latent traction
Navigation method Magnetic strip guidance
Drive mode Differential speed driving
Minimum turning radius 700mm
Driving speed 0-35m/min
Moving functions Forward&Backward, Turn Left, Turn Right,Spin around,Left translation,right translation
Control unit PLC
Wireless network WIFI/RF network
Landmark type RFID
Stop Accuracy ±10mm
Maximum weight loading capacity 1000KG
Power supply mode DC24V
Battery capacity 60AH~100AH
Duration ≥8h
Charging method Offline charging/Online charging
Operation Interface Touch screen
Safety prevention Roadblock detecting sensor+machianical bumper+emergency stop button
Error warning system Tricolor light+buzzer
Applied environment Indoor;temperature:0-50℃,humidity:60-80;gradient<2

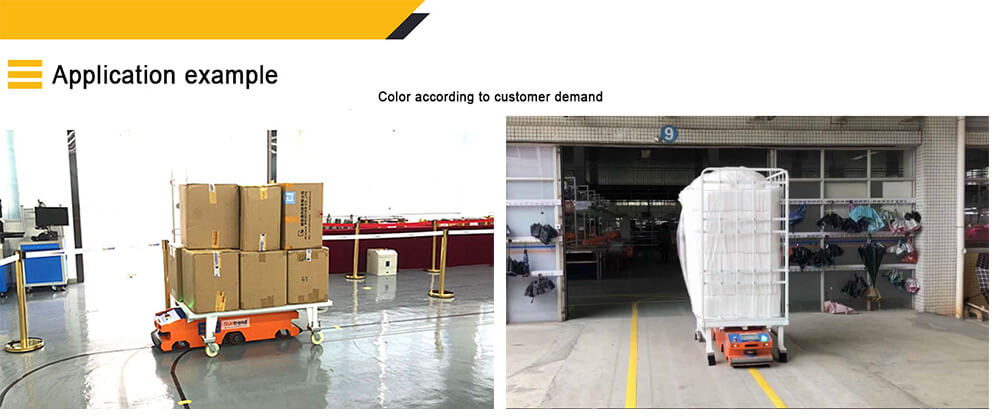

Product Application
