End – traction type AGV

End – traction type AGV

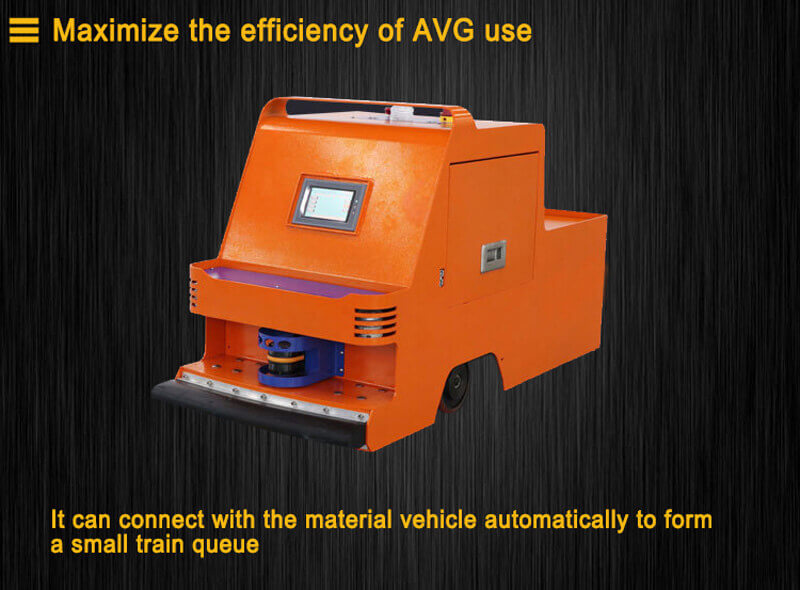

Towing type AGV can tow one or more material vehicles passes on workshop space. It can connect with or separate from the material vehicle automatically to implement AGV maximum efficiency.



Product Introduction

Single Drive Dual – way latent type AGV is able to transport in dual-wany with low cost.This AGV can lurk into the bottom of the material vehicle and automatically connect separate it from the material vehicle.

Product Details

Product Paramete

Item Basic Parameters

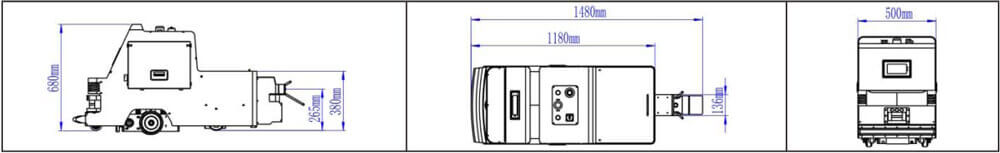

Dimension L1480mm*W500mm*H680mm
Delivery method End traction
Navigation method Magnetic strip guidance
Drive mode Differential speed drivin
Minimum turning radius 600mm
Driving speed 0-35m/min
Moving functions Move forward&backward, turn Left&right
Control unit PLC
Wireless network WIFI/RF network
Landmark type RFID
Stop Accuracy ±10mm
Maximum weight loading capacity 500KG
Power supply mode DC24V
Battery capacity 60AH~100AH
Duration ≥8h
Charging method Offline charging/Online charging
Operation Interface Touch screen
Safety prevention Roadblock detecting sensor+machianical bumper+emergency stop button
Error warning system Tricolor light+buzzer
Applied environment Indoor;temperature:0-50℃,humidity:60-80;gradient<2

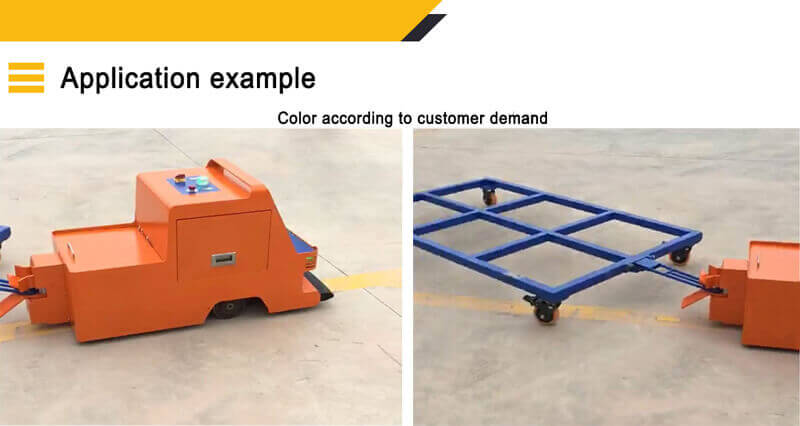

Product Application
