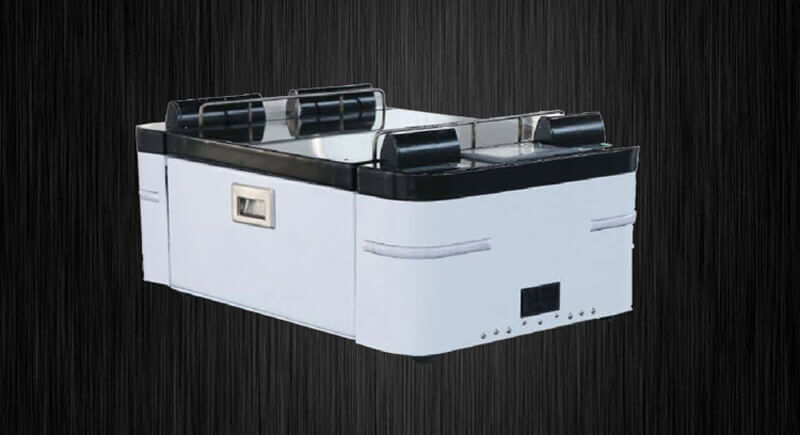

Bidirectional carrying type AGV

Bidirectional carrying type AGV

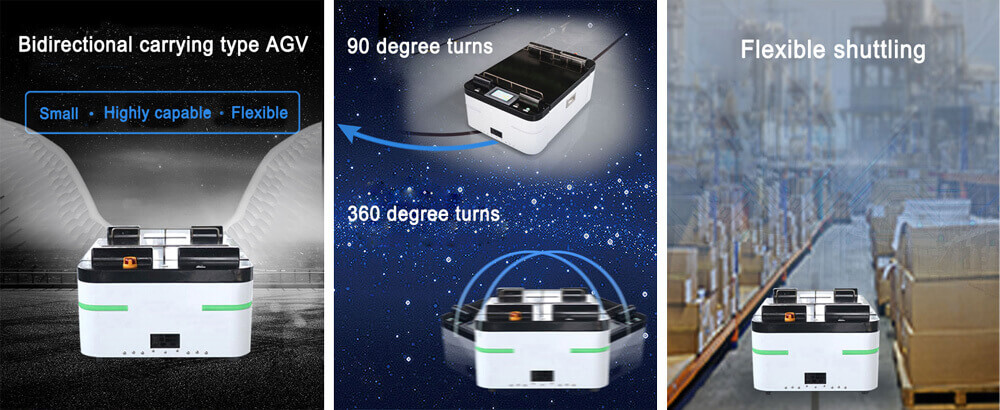

Bidirectional carrying type AGV,with small size and compact structure,it can distribute in small space.This low cost AGV can move forward &backward,spin around,so it’s widely used in light-loading type industries.



Product Introduction

Bidirectional carrying type AGV,with small size and compact structure,it can distribute in small space.This low cost AGV can move forward &backward,spin around,so it’s widely used in light-loading type industries.

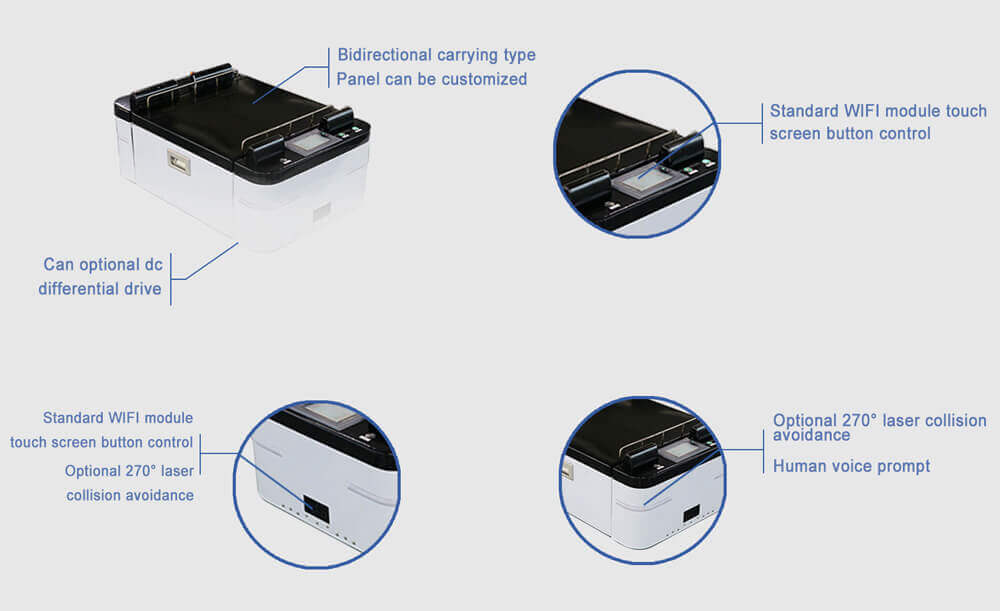

Product Details



Product Paramete

Item Basic Parameters
Dimension L730mm*W510mm*H330mm
Delivery method Bidirectional carrying type
Navigation method Magnetic strip guidance
Drive mode Differential speed driving
Minimum turning radius 600mm or spin around
Driving speed 0-35m/min
Moving functions Move forward&backward, turn left&right and spin around
Control unit PLC
Wireless network WIFI/RF network
Landmark type RFID
Stop Accuracy ±10mm
Maximum weight loading capacity 100KG
Power supply mode DC24V
Battery capacity 20AH~40AH
Duration ≥8h
Charging method Offline charging/Online charging
Operation Interface Touch screen
Safety prevention Roadblock detecting sensor+machianical bumper+emergency stop button
Error warning system Tricolor light+buzzer
Applied environment Indoor;temperature:0-50℃,humidity:60-80;gradient<2
