Bidirectional carrying robot AGV

Bidirectional carrying robot AGV






Product Introduction

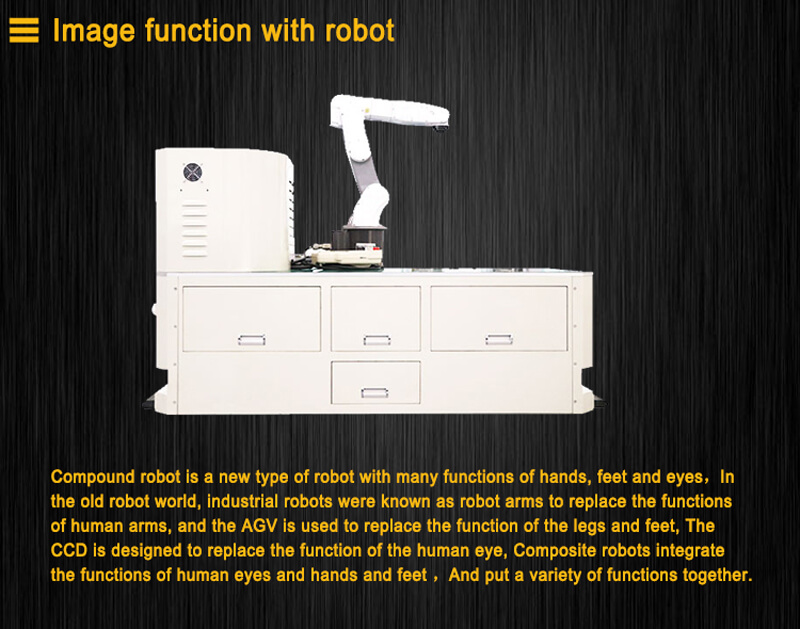

It loads robot on AGV and implements robot moving operations. This AGV iterates AGV,robot,vision system and on-line equipments to finish multiple operations, The AGV can load diverse types of robot, provide power supply to robot&visual equipment and finish moving operations.

Bidirectional carrying robot AGV

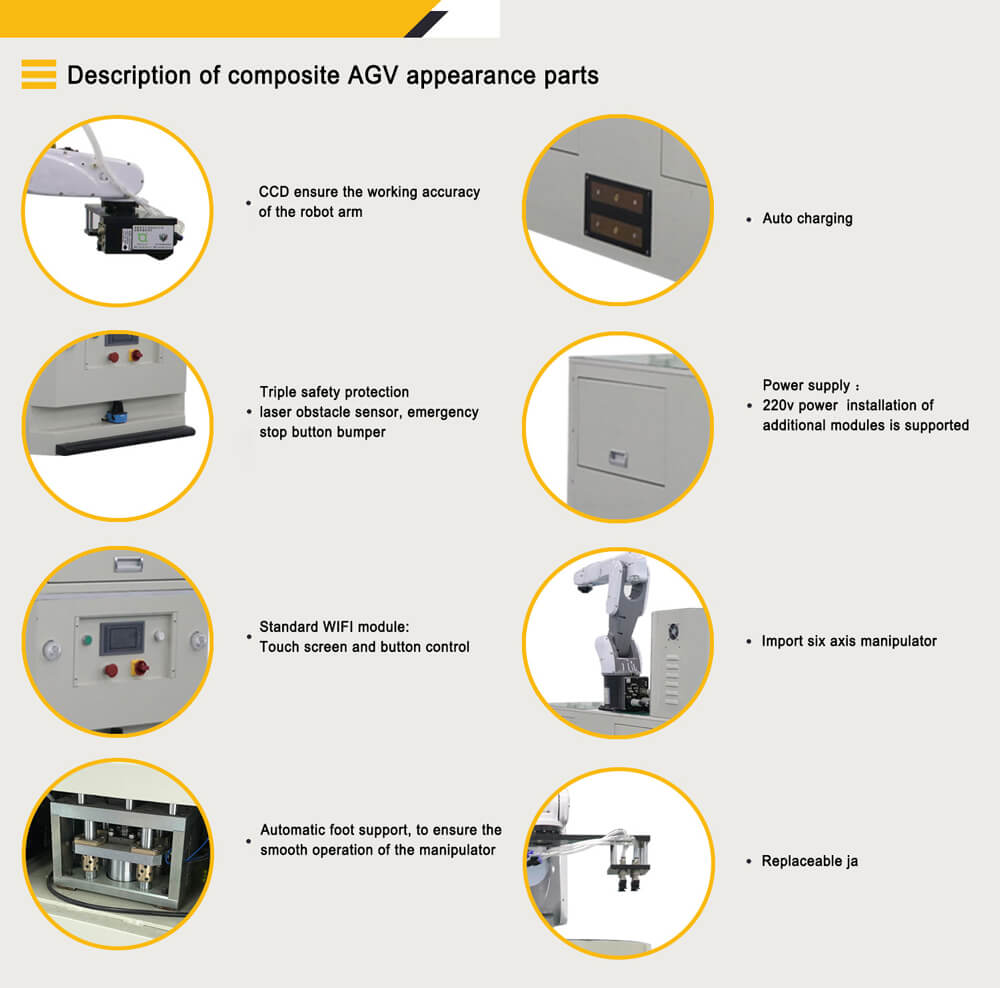

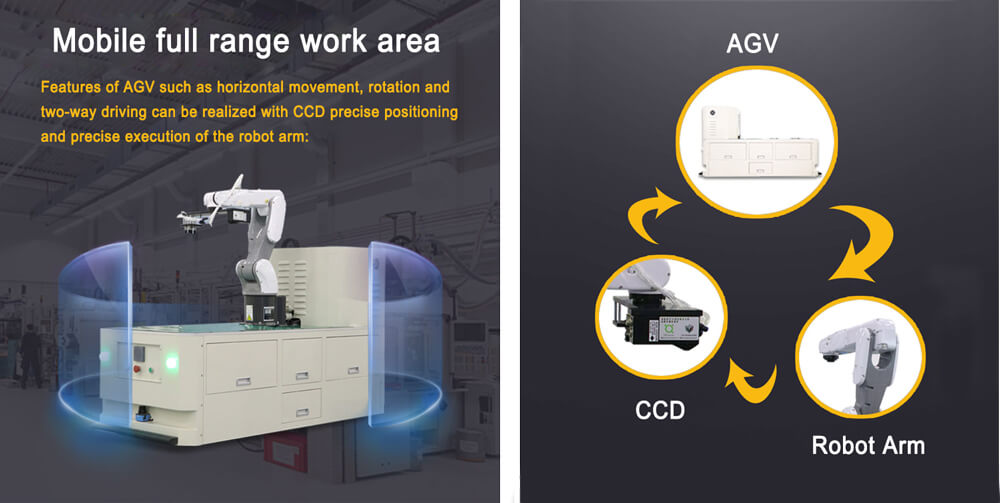

Product Details

Bidirectional carrying robot AGV

Bidirectional carrying robot AGV

Bidirectional carrying robot AGV Bidirectional carrying robot AGV

Product Paramete

Item Basic Parameters

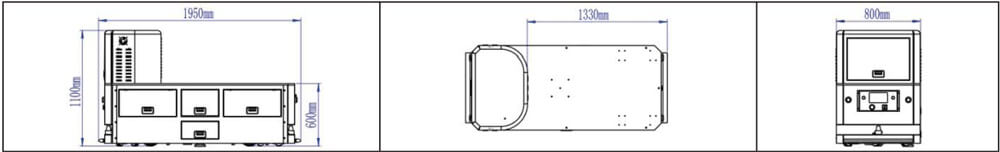

Dimension L1950mm*W800mm*H1100mm
Delivery method Bidirectional Carry type
Navigation method Magnetic strip guidance
Drive mode Steering wheel drive
Minimum turning radius 700mm
Driving speed 0-35m/min
Moving functions Move forward&backward, turn Left&right
Control unit PLC
Wireless network WIFI/RF network
Landmark type RFID
Stop Accuracy ±10mm
Maximum weight loading capacity 1200KG
Power supply mode DC48V
Battery capacity 100AH
Duration ≥8h
Charging method Offline charging/Online charging
Operation Interface Touch screen
Safety prevention Roadblock detecting sensor+machianical bumper+emergency stop button
Error warning system Tricolor light+buzzer
Applied environment Indoor;temperature:0-50℃,humidity:60-80;gradient<2



Bidirectional carrying robot AGV

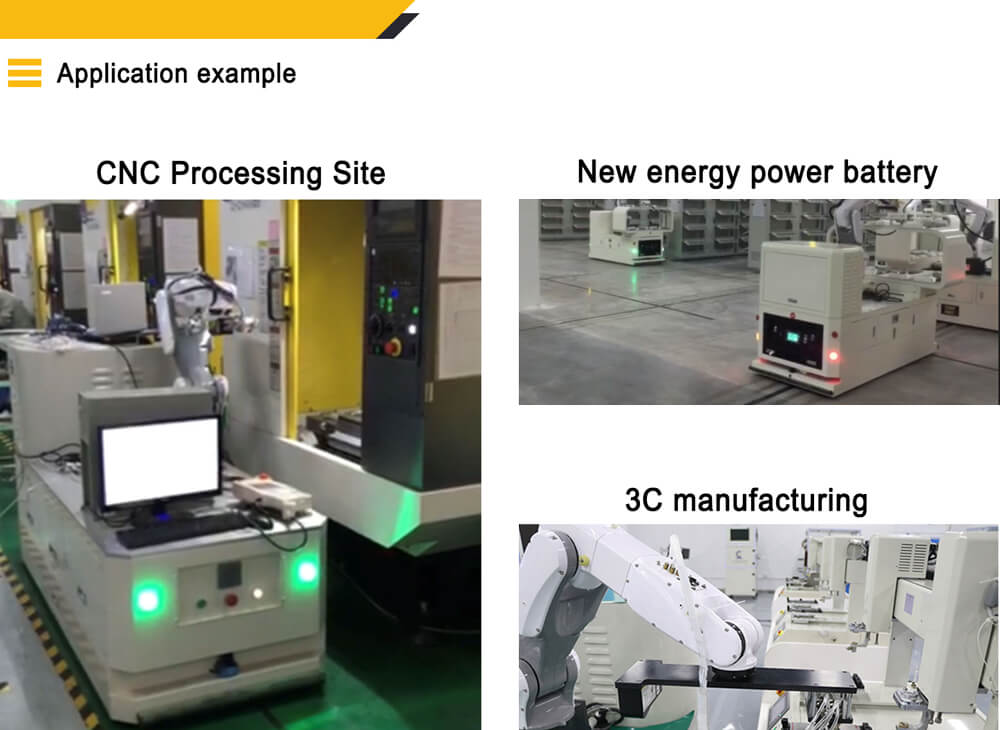

Product Application
