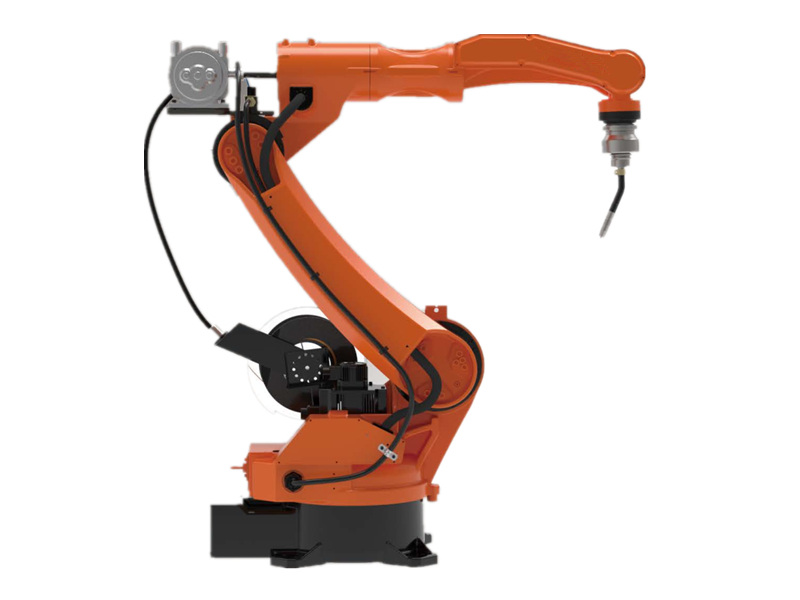

Tig welding robot with wire feeder

Tig welding robot with wire feeder




RBT-1006A-200 connect Bingo Tig welding power source.Competely tested before delivery;With full prevention of High frequency interfference;Tested video provided;Good welding performance.



You must know Mig welding can fill thick plate because of the wire feeder can offer continuous molten metal. What about TIG welding? It’s only used in self-fusion welding? We can offer TIG welding robot with filler now thanks to the great efforts of our technicians. It’s really a good solution when customer want to weld a little thick plate with TIG welding.

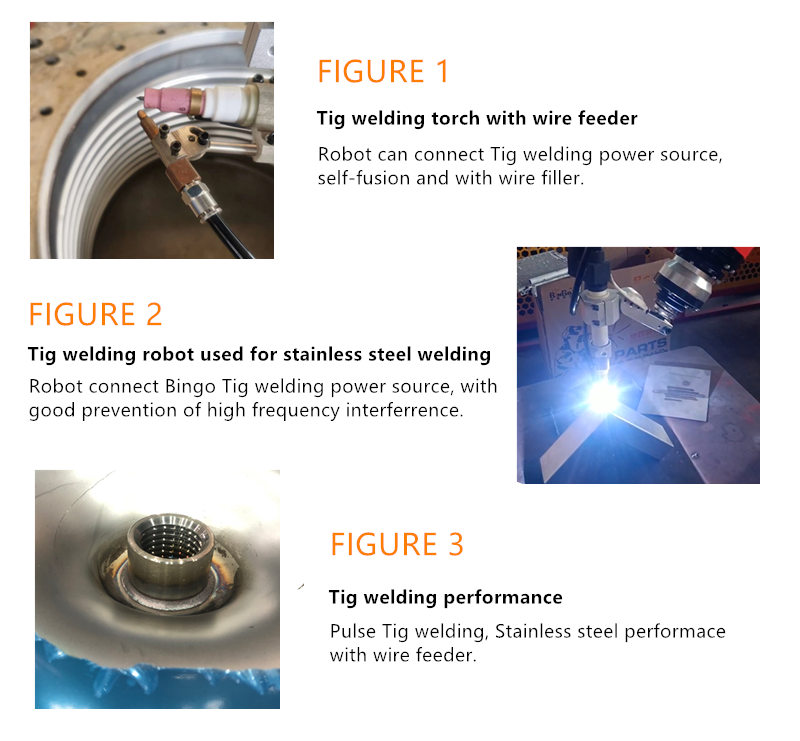

Some details about TIG welding robot with filler can be shared here. The keystone of TIG welding robot is the torch, it’s has some special configuration that let wire feeding directly into the arc zone, where the temperature are higher resulting in continuous liquid-flow transfer. This configuration also offers the advantage of reduced overall dimensions and greater accessibility of the torch for robotic welding of complex geometries. There is no longer any need to position and direct the weld wire with respect to the torch and the joint to be welded. Robot can communicate with external PLC so that control the wire feeder working.

Our company can offer customers with different terms of delivery. Customers can choose shipping way by sea or by air according to urgency priority. Our packaging cases can meet sea and air freight requirement. We’ll prepare all files like PL, the certificate of origin, invoice and other files. There is a worker whose main job is make sure every robot can be delivered to customes port without a hitch in 40 working days.


Your worker will have 3-5 days free training in our factory. There will be a Wechat group or WhatsApp group, our technicians who are responsible for after sale service, electrical, hard ware, software, etc, will be in. If one problem happens twice, our technician will go to customer company to solve the problem.

Q. How to set power source when using TIG welding?

Your welding machine should be set to DCEN (Direct current electrode negative) also known as straight polarity for any work piece that needs to be welded unless they material is either aluminum or magnesium. High frequency is set to start which is found built in nowadays in inverters. Post flow should be set at least 10 seconds minimum. If A/C is present it is set to default setting that coincides with DCEN. Set the contactor and amperage switches to remote settings. If the material that needs to be welded is aluminum polarity should be set to A/C, A/C balance should be set to about 7 and high frequency supply should be continuous.

Q. How to set shield Gas during TIG welding?

TIG welding uses the inert gas for shielding the welding area from contamination. Thus this inert gas is also stated as shielding gas. At all cases it should be argon and no other inert gas such as neon or xenon etc especially if TIG welding is to be performed. It should be set around 15 cfh. For welding aluminum alone you can make use of a 50/50 combination of argon and helium.

Q. How to choose TIG welding torch?

There are a lot of different kind of torch can be used. But according to the chilling method, you have air cooling TIG torch and water cooling TIG torch. And also, the Ampere will be different, some of them can bear 250AMP, while some of them can only bear 100AMP.

Q. when should I choose water cooling TIG torch and air cooling TIG torch?

You should choose water cooling TIG torch if there are a large quantity of pieces need to weld. But air cooling TIG torch will be a good choice if your pieces is very few.

If you have thick pieces to be weld, water cooling TIG torch is better than air cooling TIG torch.

Q. Is the tungsten electrode used for all applications?

No, for TIG welding it is understood that the electrodes you use to perform TIG welding should be made out of tungsten element. But it’s not means one tungsten electrode can be used for all applications. You should choose different tungsten electrode according to different material.
