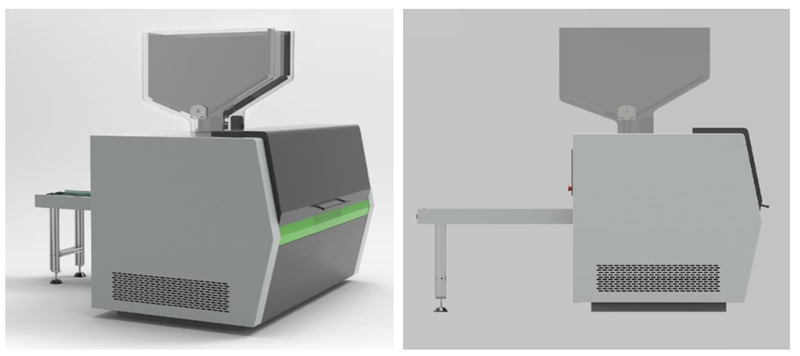

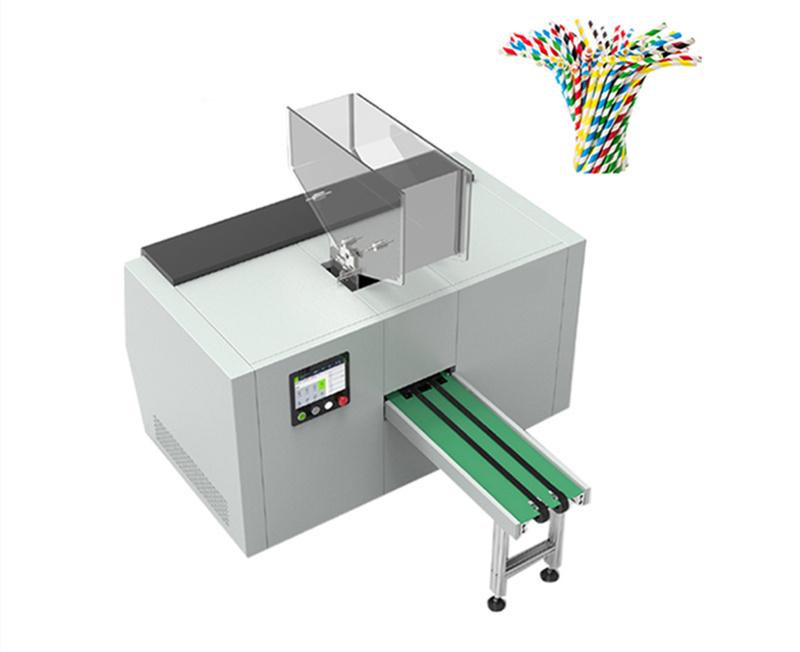

Straw bending machine can bend the straight straws to be flexible with accordion shape. The entire device is fully automated from the straw input to the finished product output, only simply add straight straw blanks manually. The straw is added by the hopper in the upper part of the device. Relying on two sets of straw holder to clamp the straight straw and one by one feeds into the main rotary turntable device.



Straw bending machine

Straw bending machine

Introduction

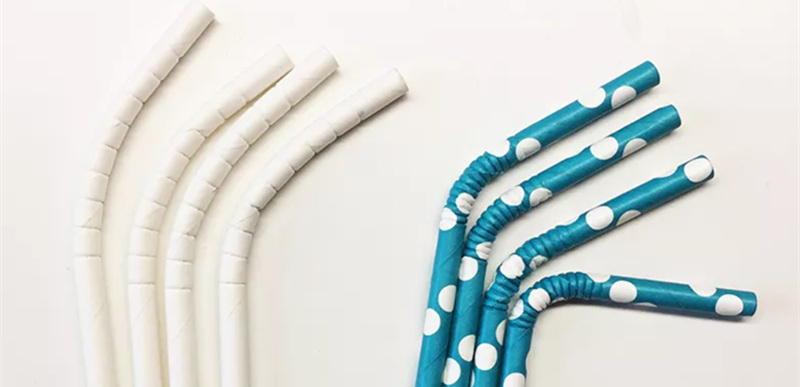

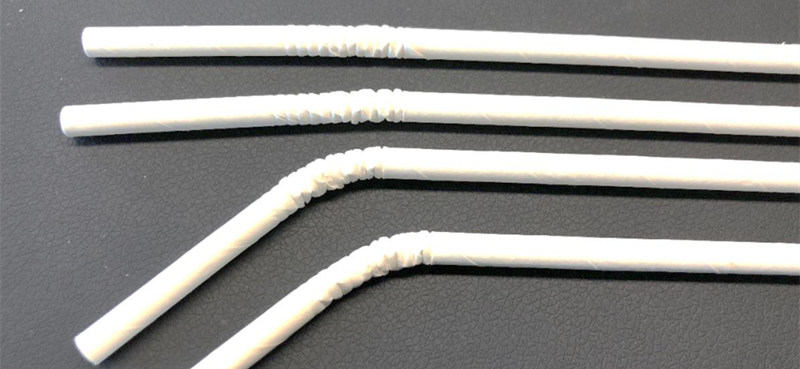

Straw bending machine can bend the straight straws to be flexible with accordion shape. The entire device is fully automated from the straw input to the finished product output, only simply add straight straw blanks manually. The straw is added by the hopper in the upper part of the device. Relying on two sets of straw holder to clamp the straight straw and one by one feeds into the main rotary turntable device. Through the rotation of the main rotary turntable device, the straw forms an indentation on the straw through the two pressure rollers. Then it is compressed by two robot hands to make trace appear accordion shape. Finally, the finished product is automatically delivered.

Straw bending machine

Features

1) High production efficiency, the whole machine only needs one person to operate.

2) Suitable for bend the straight straws made of plastics, paper, etc.

3) Automatic counting during production process and display on touch screen.

4) Automatically stop when machine complete the production batch, which is convenient for manual bagging

5) Friendly human-machine interface, automatic stop and alarm when machine meet fault.

Straw bending machine

Straw bending machine Straw bending machine Straw bending machine Straw bending machine Straw bending machineStraw bending machine

Straw bending machine  Straw bending machine Straw bending machineStraw bending machine

Our company can offer customers with different terms of delivery. Customers can choose shipping way by sea or by air according to urgency priority. Our packaging cases can meet sea and air freight requirement. We’ll prepare all files like PL, the certificate of origin, invoice and other files. There is a worker whose main job is make sure every machine can be delivered to customes port without a hitch in 40 working days.

Straw bending machine

Straw bending machine

Your worker will have 3-5 days free training in our factory. There will be a Wechat group or WhatsApp group, our technicians who are responsible for after sale service, electrical, hard ware, software, etc, will be in. If one problem happens twice, our technician will go to customer company to solve the problem.

Straw bending machine

Q:What’s the delivery time?
A:Around 20~30days. however, based on order.

Q:Can you help us to buy other goods?
A:Sure of that, it is our honor to work for you, and control the goods quality.

Q:What’s payment terms ,trade terms you accept ?
A:Usually we appreciate TAT 30% deposit . then 70% balance is paid before shipment.we usually offer fob ningbo price .but we also accept other way like LC,wetern union and do CFR&CIF etc.

Q:Does it easy to operate and what can i do if it doesn’t work?
A:Flrst ,our machine Is stable and easy to operate by one man .what you do is just learm some basic thing like loading the jumbo roll paper. start the machine and cutting the paper.And we will sent you manual and vldeo ,we suggest you to come to visit our factory to leam more thing by yourself,and if there is something goes wrong,you can call us ,video-chat ,emall us And we will give solutions within 36 hrs .Our engineer also can be distrbuted to overseas as you required.

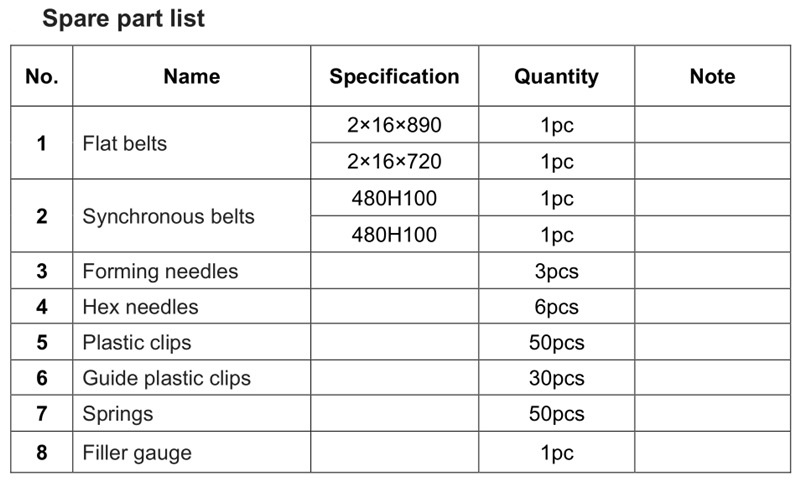

Q:If the machine’s spare parts broken ,where can i get ?
A:We will give you the spare parts which is vulnerable,and some critical parts like gear box,our quality is good ,incase it broken within one year ,we will sent you for free.
