Scara robot RBT-RS04-03

Scara robot RBT-RS04-03


*Compact and flexible structure,fast running speed ,high transmission accuracy and low noise. *Highly rigid arm design realizes high load and high speed in one package.



Product Introduction

*Compact and flexible structure,fast running speed ,high transmission accuracy and low noise.

*Highly rigid arm design realizes high load and high speed in one package.

*Available in 600 and 400mm arm span;3kg or 6kg payload.

*Adapt to G3 control cabinet; provide 23 input and 23 output custom IO; support serial port, network, USB and other interface forms,

*Suitable for handling, palletizing, assembly,3C and other application fields.



Product Paramete

Model RBT-RS04-03 RBT-RS06-06
Function Material handling;3C Material handling;3C
Total axes 6 4
Maximum reach 400mm 600mm
Payload Rated load 1kg 3kg
Maximum load 3kg 6kg
Permissible inertial torque of rotating axis Rated torque 2.005kg.m° 2.01kg.m
Maximum torque 2.05kg.m 2.12kg.m
Repeated positioning accuracy 1st axis+2nd axis ±0.01mm ±0.02mm
3rd axis (elevating axis) ±0.01mm ±0.01mm
4th axis (rotation axis) ±0.01mm ±0.01mm
Max speed 1st axis 720mm/sec 450mm/sec
2nd axis 720mm/sec 720mm/sec
3rd axis (elevating axis) 1000mm/sec 1000mm/sec
4th axis (rotation axis) 2500mm/sec 2000mm/sec

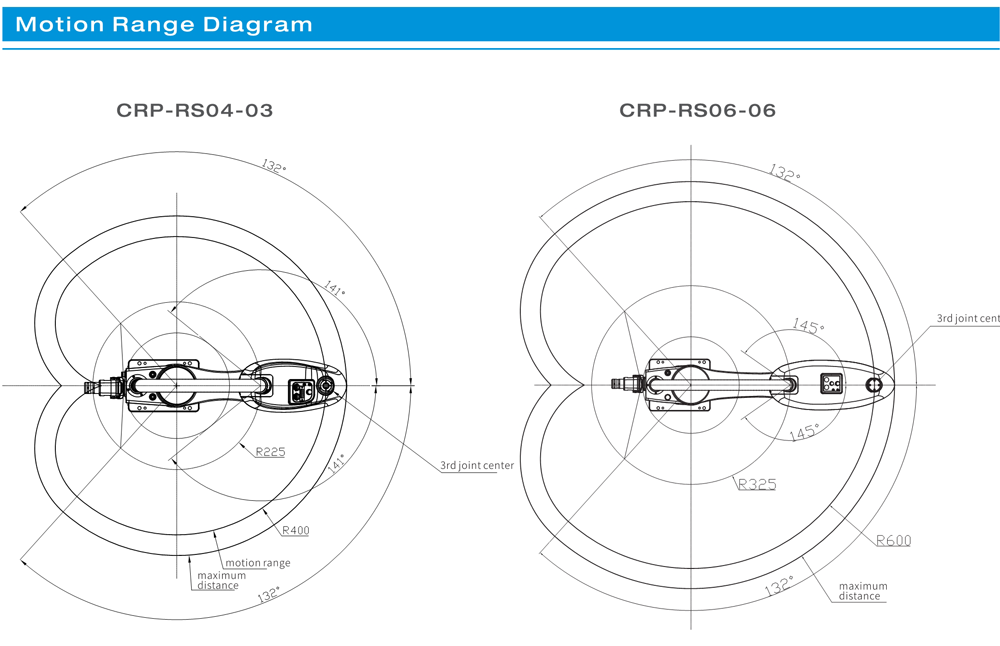

Max operating area 1st ±132mm ±132mm
2nd ±145mm ±145mm
3rd axis (elevating axis) 170mm 220mm
4th axis (rotation axis) ±360mm ±360mm
Installation method Floor mounted Floor mounted
Robot body weight 13KG 17KG
Power consumption 0.7kw 0.8kw


Installation environment

Ambient temperature 0°~45° 0°~45°
Relative humidity 20~80%RH (No condensation) 20~80%RH(No condensation)
Vibration Under 4.9m/S² Under 4.9m/S²



Product Details

Product Application

Certificate
