RBT-S40 industrial robot control system adopts the internationally popular open software and hardware platform. Equipped with independent research and development of dedicated multi-axis motion control, data acquisition, robot dedicated terminal and security interface hardware technology;



Product Introduction

RBT-S40 industrial robot control system adopts the internationally popular open software and hardware platform. Equipped with independent research and development of dedicated multi-axis motion control, data acquisition, robot dedicated terminal and security interface hardware technology; Modular software design, for different ontology structure, application industry, function, etc. Structurally, the system can control polar coordinate robot, Delta robot, SCARA robot, stacking robot and other robots. The system can be used to control robots in handling, stacking, cutting and other fields. The standard computer bus can extend the field bus, machine vision system and so on.

Model Coding

Symbol Series
RBT-S40 4-axis pulse series
RBT-S80 8-axis pulse series
RBT-S100 ECAT series
RBT-SA40 4-axis series
RBT-SA60 6-axis series
RBT-SA80 8-axis series
RBT-SA100 ECAT series



Product Application

Welding, cutting, handling, palletizing, machine tool loading and unloading, spraying, forging and pressing, casting and other fields or industries



Technique Feature

· Optimized structure algorithm and adapted to ontology control of various structure forms

· Modularized functional Settings suitable for a variety of applications

· Improved computer bus connection to ensure reliability and practicality

· Open structure, synchronous international level, convenient function expansion

· Software PLC function, convenient logic control

· Process function, simple programming and easy operation

· EtherCAT servo adaptation

· Safety module to ensure safe production of robots

Technical parameters

Teach pendant 8 inches TFT-LED, keyboard + touch screen, mode selection switch, safety switch, emergency stop button
Control shaft number 4 axis
Storage Spaces 200M
Safety module Emergency stop, abnormal signal to ensure the robot to stop quickly
Control servo Absolute incremental, domestic, Panasonic, Fuji, Tama Chuan, Delta, Yaskawa, Mitsubishi, Yamagata
Interface Digital I/O interface, 16 input/16 output, Ether CAT Control servo
4-way 0-10V analog output, 12-bit accuracy
2-channel encoder signal interface (position tracking)
Dual Ethernet interface,(RS232,485,422)interface
Operation mode Teach, reproduce, remote
Program method Teaching reproduction, process programming(Gluing, tracking, vision, remote, stamping)
Control method  Position control
Coordinate Systems Joint coordinates, base coordinates, user coordinates, tool coordinates
Software PLC Trapezoidal map editing,5000 step
Applications Welding, cutting, handling, palletizing, machine tool loading and unloading, spraying, forging and pressing, casting and other fields or industries
Power AC220V±15% 50/60Hz 160W
Size 330*180*88mm

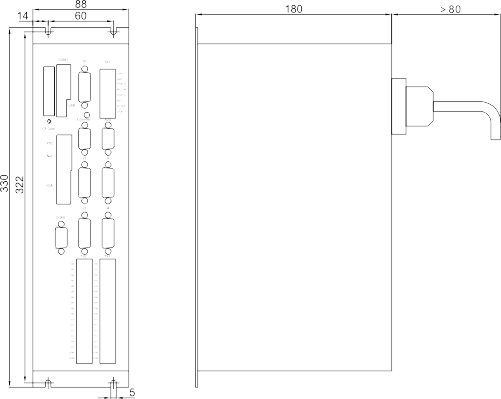

Installation dimension drawing
