Positioner will help robot adjust work piece position as big as possible so robot torch can reach it and get good welding performance.It's can be customized and synergy with robot.



One Axis rotator

One Axis rotator

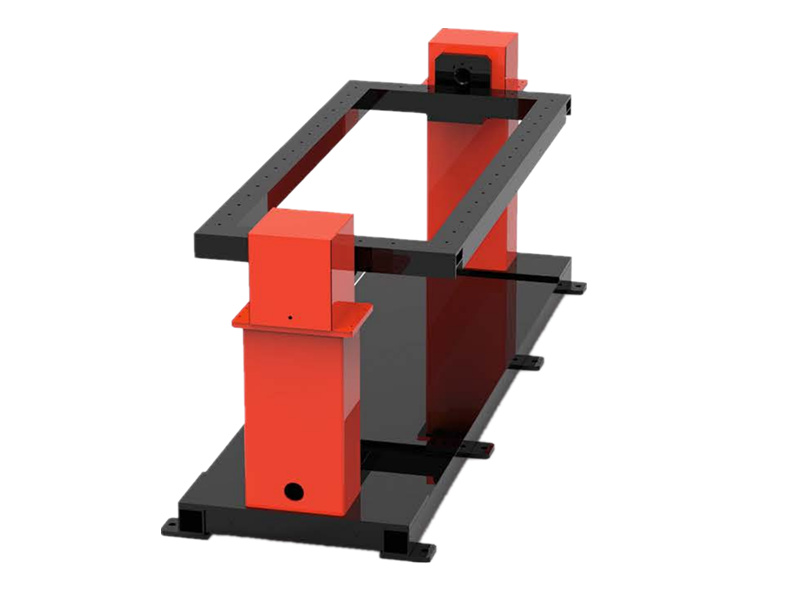

The single axis head-tail positioner is a positioner whose head frame drives to rotate, and tail frame follows to rotate. This positioner is designed for long work piece, the work table between the head and tail can rotate to place work piece at the best welding position. This model include: basement, head frame, tail frame, working table, servo motor, RV reducer, etc.
One Axis rotator

One Axis rotatorOne Axis rotator

One Axis rotatorOne Axis rotator

Our company can offer customers with different terms of delivery. Customers can choose shipping way by sea or by air according to urgency priority. Our packaging cases can meet sea and air freight requirement. We’ll prepare all files like PL, the certificate of origin, invoice and other files. There is a worker whose main job is make sure every robot can be delivered to customes port without a hitch in 40 working days.

One Axis rotator

One Axis rotator

Your worker will have 3-5 days free training in our factory. There will be a Wechat group or WhatsApp group, our technicians who are responsible for after sale service, electrical, hard ware, software, etc, will be in. If one problem happens twice, our technician will go to customer company to solve the problem.
One Axis rotator

Q1.How many external axis can your robot add?

A.At present, Our robot can add 3 more external axis to robot which can collaborate with robot. That is to say, we have standard robot work station with 7 axis, 8 axis and 9 axis.

Q2. If we want to add more axis to the robot, is there any choice?

A. Do you know PLC? If you know this, our robot can communicate with PLC, and then give signals to PLC to control external axis. In this way, you can add 10 or more external axis. The only shortage of this way is that the external axis can’t collaborate with robot.

Q3. How PLC communicate with robot?

A. We have i/O board in the control cabinet, there are 22 output port and 22 input port, PLC will connect I/O board and receive signals from robot.

Q4. Can we add more I/o port?

A. For simply weld application, these I/O port is enough, if you need more, we have I/O expanding board. You can add another 22 input and output.

Q5. What kind of PLC do you use?

A. Now we can connect Mitsubishi and Siemens and also some other brands.
