Little Bidirectional carrying type AGV

Little Bidirectional carrying type AGV






Product Introduction

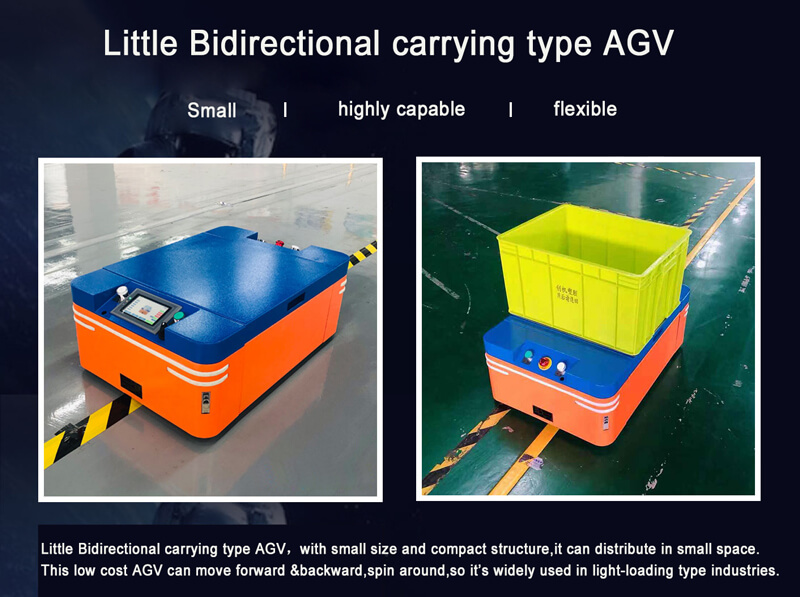

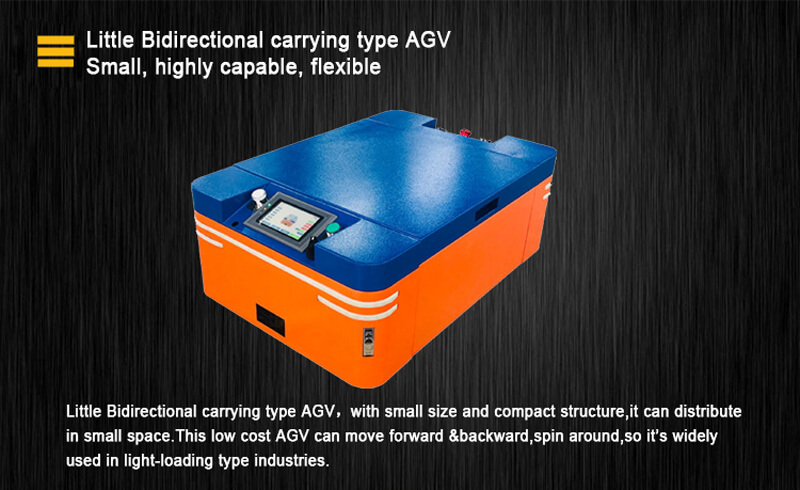

Little Bidirectional carrying type AGV, with small size and compact structure,it can distribute in small space.This low cost AGV can move forward &backward,spin around,so it’s widely used in light-loading type industries.

Little Bidirectional carrying type AGV

Product Details

Little Bidirectional carrying type AGV Little Bidirectional carrying type AGV

Little Bidirectional carrying type AGV

Product Paramete

Item Basic Parameters

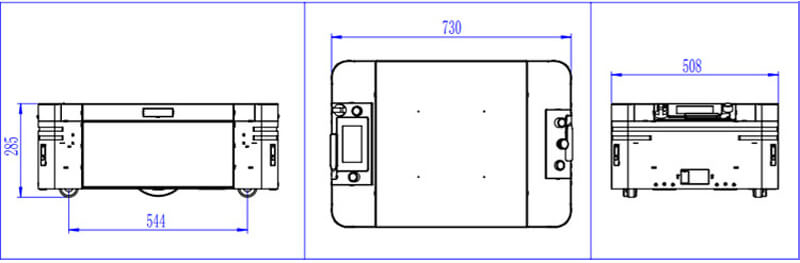

Dimension L730mm*W508mm*H285mm
Delivery method Carrying type
Navigation method Magnetic strip guidance
Drive mode Differential speed driving
Driving speed 0-35m/min

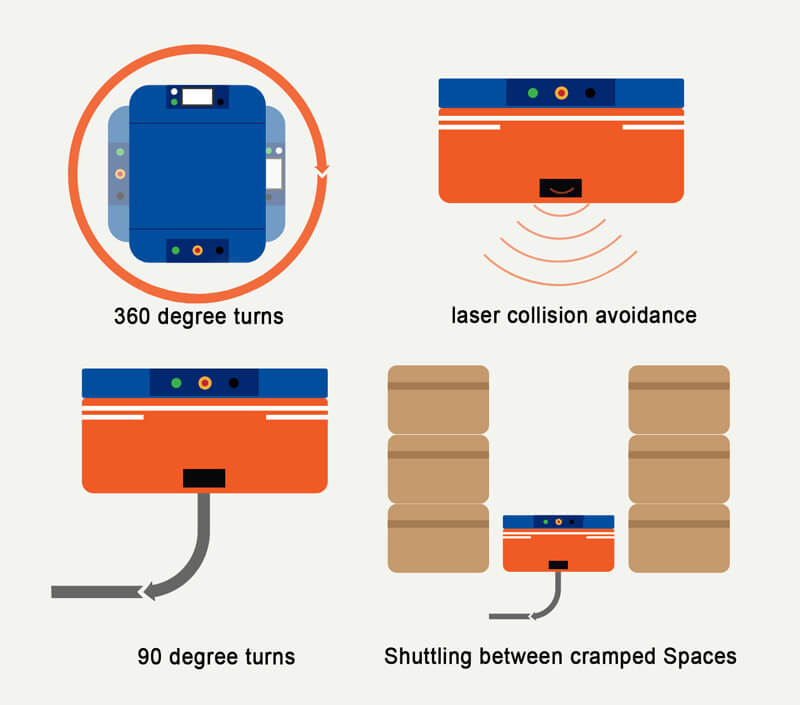

Moving functions Move forward&backward, turn left&right and spin around
Control unit PLC
Wireless network WIFI/RF network
Landmark type RFID
Stop Accuracy ±10mm
Maximum weight loading capacity 0-50KG
Power supply mode DC24V
Battery capacity 20AH~40AH
Duration ≥8h
Charging method Offline charging/Online charging
Operation Interface Touch screen
Safety prevention Roadblock detecting sensor+machianical bumper+emergency stop button
Error warning system Tricolor light+buzzer
Applied environment Indoor;temperature:0-50℃,humidity:60-80;gradient<2



Little Bidirectional carrying type AGV

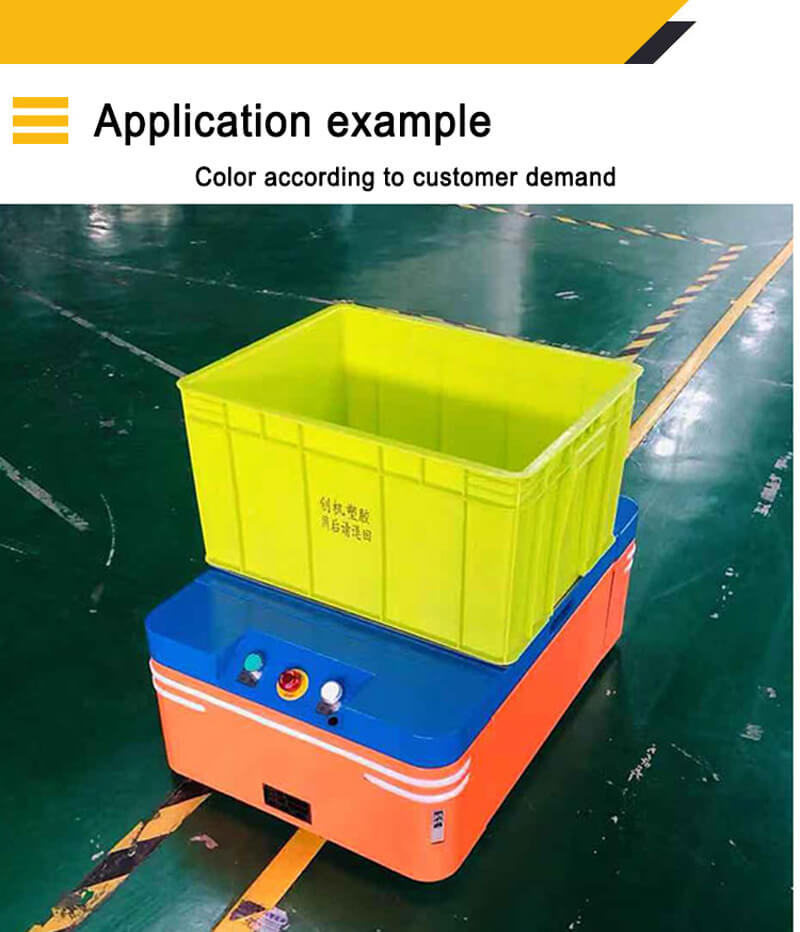

Product Application

Little Bidirectional carrying type AGV

Little Bidirectional carrying type AGV
