Product Introduction

Handling robot RBT-RH14-10

*Payload is 10kg.The arm spa is 1.4 meters. It can be installed on the ground or upside down flexibly.

*With large working space and fast running speed.it is suitable for welding, spraying, loading and unloading, handling, sorting, assembling and other applications.

*The safety emergency stop board is independent of the controller, and the safety relay circuit id adopted to provide double circuit emergency stop to ensure the reliability of emergency stop.

*The robot body cables are made of special cables for flexible robots.

*Built-in three-phase transformer,380v and 200v isolation, more stable power supply. (Power supply requirements can be customized for different countries.)

*Built-in three phase filter can effectively improve the performance of EMC and EMI.

*The robot body is with dual-circuit gas pipe and meets welding and handling requirements.



Product Paramete

Model RBT-RH14-10
Arm form Vertical multiple joints
Degree of freedom 6 axis
Maximum payload 10KG

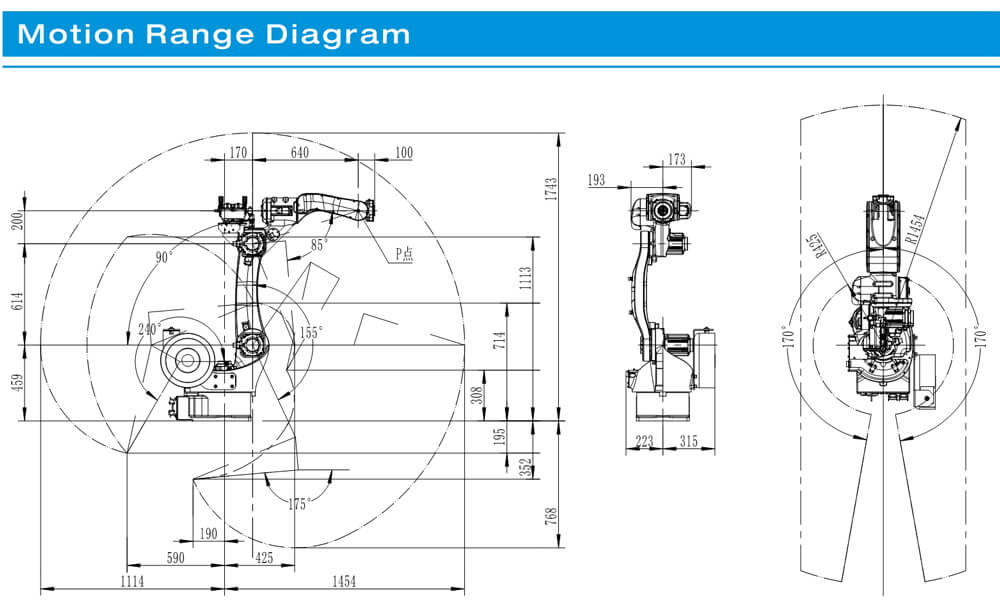

Maximum travel axis 1 Ground/upside down mounting -167°~167°,wall mounting -30°~30°
axis 2 0°~175°
axis 3 -80°~150°
axis 4 -190°~190°
axis 5 -105°~130°
axis 6 -210°~210°
Maximum speed axis 1 169°/S
axis 2 169°/S
axis 3 169°/S
axis 4 280°/S
axis 5 240°/S
axis 6 520°/S
Allowable torque axis 4 10N.m
axis 5 10N.m
axis 6 3N.m
Allowable moment of inertia axis 4 0.25kg.m²
axis 5 0.25kg.m²
axis 6 0.05kg.m²
Repeated positioning accuracy ±0.08mm
Maximum reaching distance 1440mm
Robot body weight 170KG
Installation mode Ground/upside down mounting


Installation environment

Ambient temperature 0°~45°
Relative humidity 20~80% (No condensation)
Vibration Under 0.5G
Others Robot installation must be away from: Flammable or corrosive liquids or gases, electrical sources of interference
IP level Body IP54, wrist IP67
Advantage features Compact structure, high speed, high precision, high expansibility and easy operation
Application Cutting, assembly, handling, marking, grinding
