Handling robot RBT-RA09-06

Handling robot RBT-RA09-06


*Well-knit design makes the robot body more slender than other same level product, so it is more flexible even in a small space, also keep a very low rate of collision with surrounding devices. *Maximum reach 915mm.



Product Introduction

*Well-knit design makes the robot body more slender than other same level product, so it is more flexible even in a small space, also keep a very low rate of collision with surrounding devices.

*Maximum reach 915mm.

*Lighter structure design than other same level product, so it is easy to install inside system or to mount upside-down.

*High rigidity arm and top-level servo control technology guarantee the smoothness and stability while the movement.

*Rated payload 6kg, easily applied in multi-application.

*Built-in cable, no more catheter and cable twisting on the arm ,leak=proof structure, can be applied in dust and oil-mist environment.



Product Paramete

Model RBT-RA09-06
Arm form Vertical multiple joints
Degree of freedom 6 axis
Maximum payload 6KG

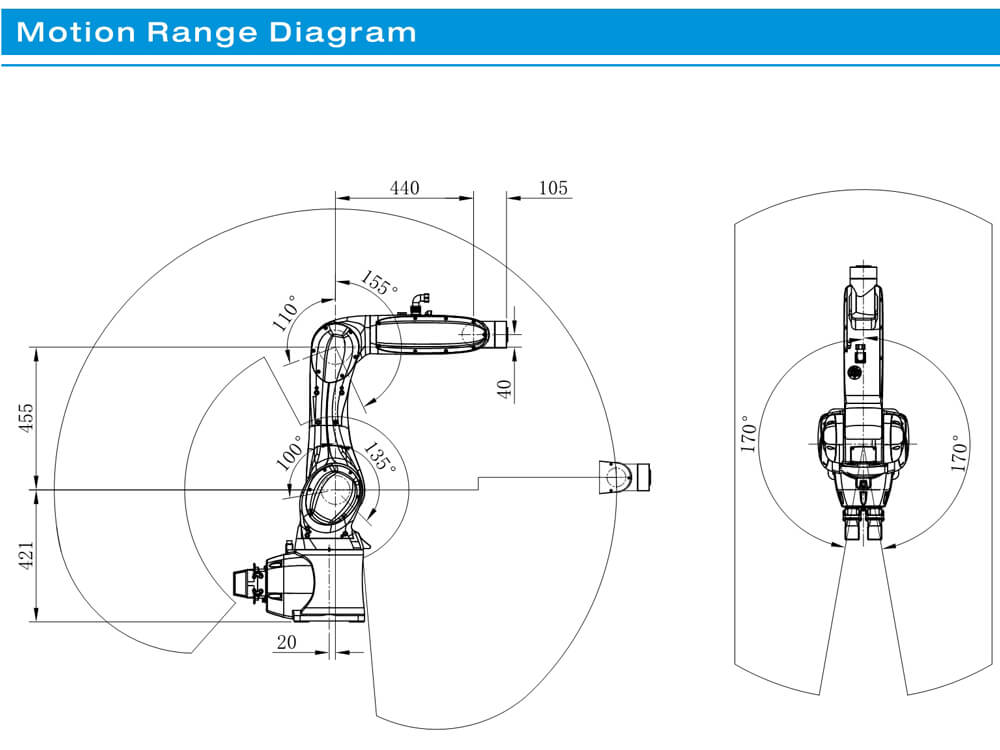

Maximum travel axis 1  -170°~170°
axis 2 45°~190°
axis 3 -155°~110°
axis 4 -170°~170°
axis 5 -120°~130°
axis 6 -360°~360°
Maximum speed axis 1 337.5°/S
axis 2 270°/S
axis 3 375°/S
axis 4 300°/S
axis 5 375°/S
axis 6 468°/S
Allowable torque axis 4 10N.m
axis 5 10N.m
axis 6 3N.m
Allowable moment of inertia axis 4 0.25kg.m²
axis 5 0.25kg.m²
axis 6 0.05kg.m²
Repeated positioning accuracy ±0.03mm
Maximum reaching distance 915mm
Robot body weight 60KG
Installation mode Ground/upside down mounting


Installation environment

Ambient temperature 0°~45°
Relative humidity 20~80% (No condensation)
Vibration Under 0.5G
Others Robot installation must be away from: Flammable or corrosive liquids or gases, electrical sources of interference
IP level Body IP54, wrist IP67
Advantage features Compact structure, high speed, high precision, high expansibility and easy operation
Application Cutting, assembly, handling, marking, grinding
