Four rudder wheel carrying type AGV

Four rudder wheel carrying type AGV

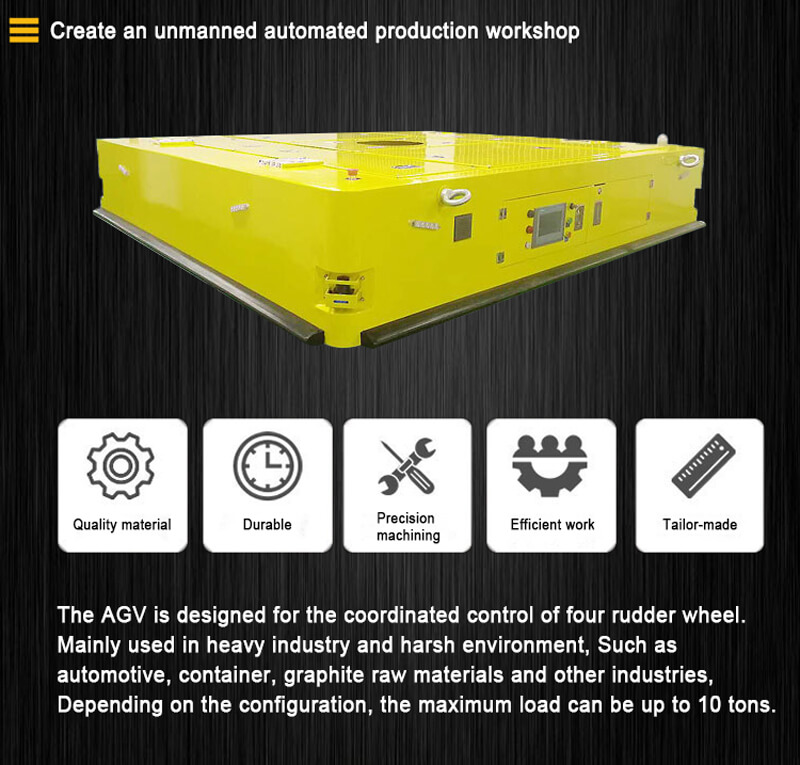

The AGV is designed for the coordinated control of four rudder wheel. Mainly used in heavy industry and harsh environment, Such as automotive, container, graphite raw materials and other industries, Depending on the configuration, the maximum load can be up to 10 tons.



Product Introduction

The AGV is designed for the coordinated control of four rudder wheel. Mainly used in heavy industry and harsh environment, Such as automotive, container, graphite raw materials and other industries, Depending on the configuration, the maximum load can be up to 10 tons.

Product Details


Product Paramete

Item Basic Parameters

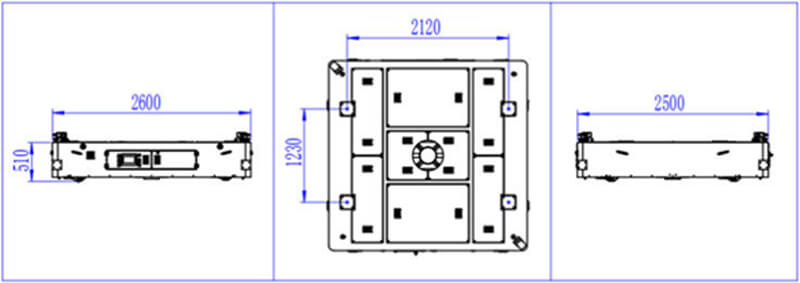

Dimension L2600mm*W2500mm*H510mm
Delivery method Four rudder wheel carrying type
Navigation method Magnetic strip guidance
Drive mode rudder wheel drive
Driving speed 0-40m/min
Moving functions Move forward&backward, turn Left&right
Control unit PLC
Wireless network WIFI/RF network
Landmark type RFID
Stop Accuracy ±10mm
Maximum weight loading capacity 4000KG
Power supply mode DC24V
Charging method Offline charging/Online charging
Operation Interface Touch screen

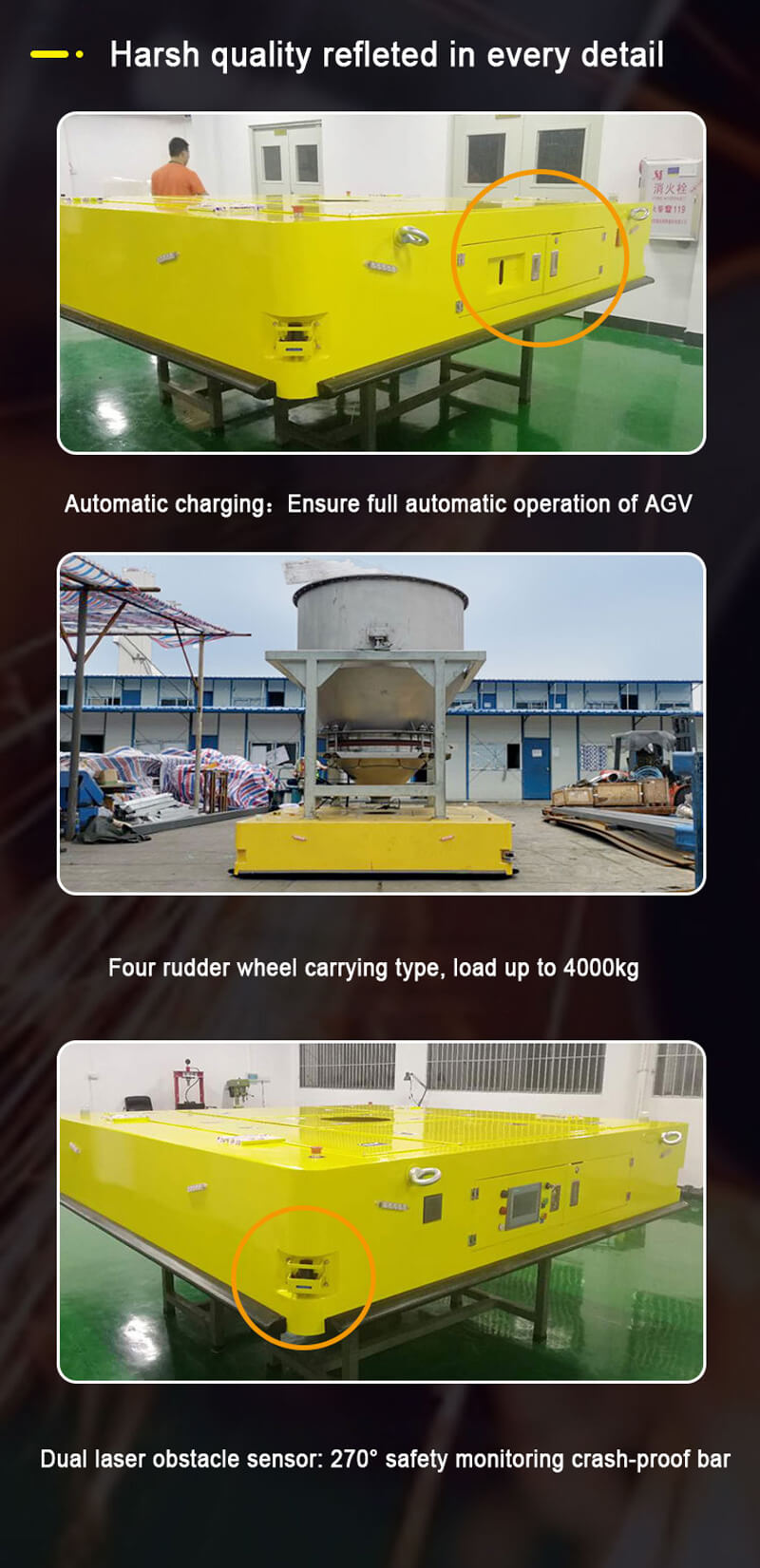

Safety prevention Roadblock detecting sensor+machianical bumper+emergency stop button
Error warning system Tricolor light+buzzer
Applied environment Indoor;temperature:0-50℃,humidity:60-80;gradient<2

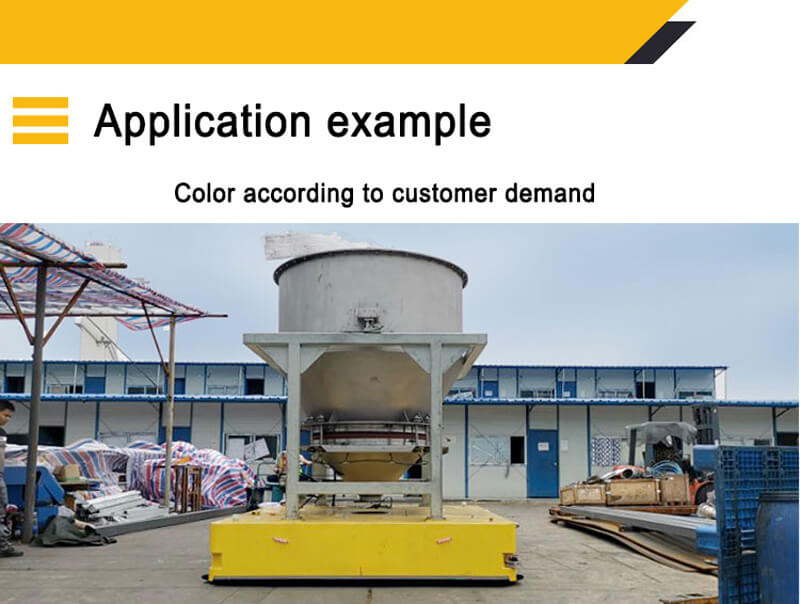

Product Application
