Drum-type AGV

Drum-type AGV


Drum-type AGV, adopt single drive differential control, it can achieve straight forward, left and right intersection differences, turning and other functions , it can lurk into the bottom of the material vehicle to implement material vehicle’s fixed point arrival& recycle operations, and automatically connect and separate it from the material vehicle. Load is recommended to be within 500KG , when the AGV senses obstacles in front of it, it can slow down and stop in advance, which is safe and reliable. RFID card reader is installed under the AGV, which can realize the factory automation transportation process by cooperating with the scheduling system.



Product Introduction

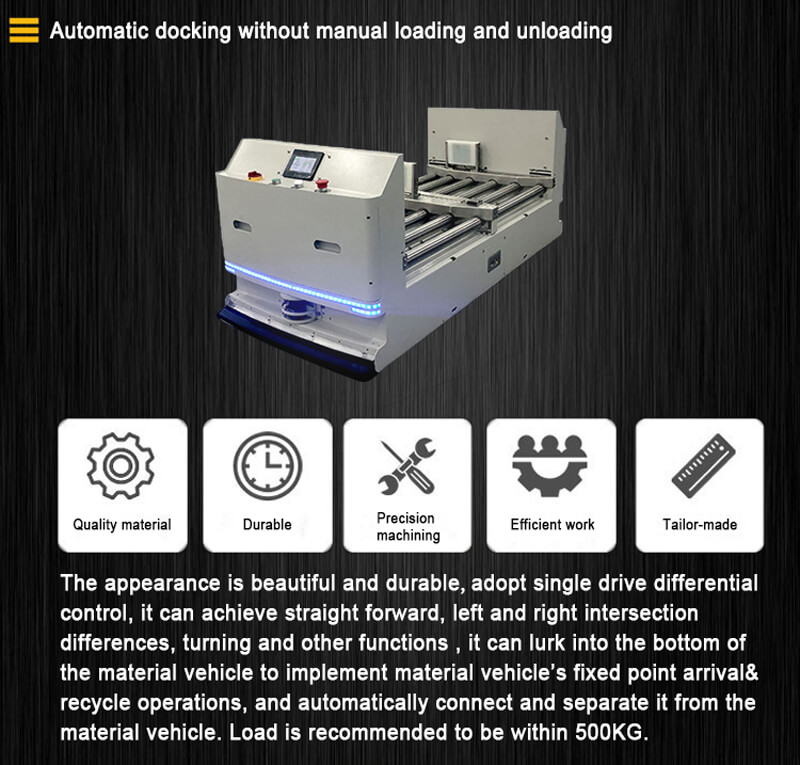

Drum-type AGV, adopt single drive differential control, it can achieve straight forward, left and right intersection differences, turning and other functions , it can lurk into the bottom of the material vehicle to implement material vehicle’s fixed point arrival& recycle operations, and automatically connect and separate it from the material vehicle. Load is recommended to be within 500KG , when the AGV senses obstacles in front of it, it can slow down and stop in advance, which is safe and reliable. RFID card reader is installed under the AGV, which can realize the factory automation transportation process by cooperating with the scheduling system.

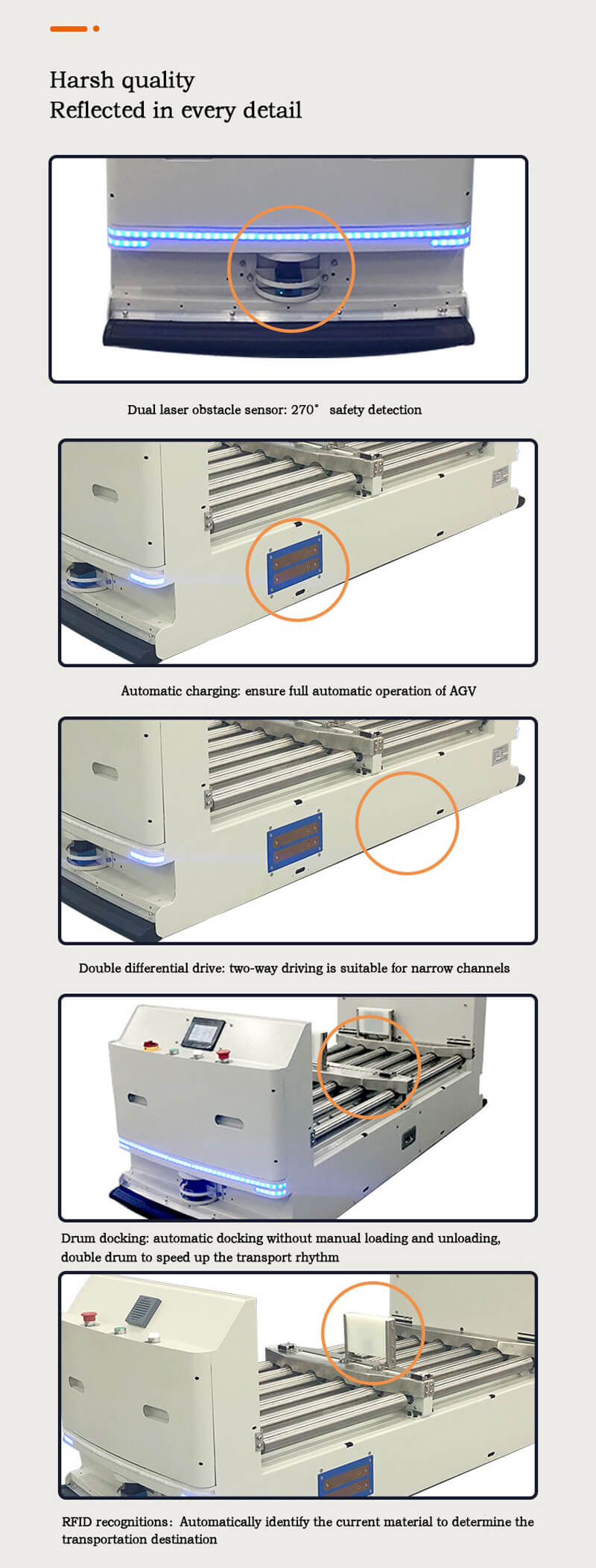

Product Details

Product Paramete

Item Basic Parameters

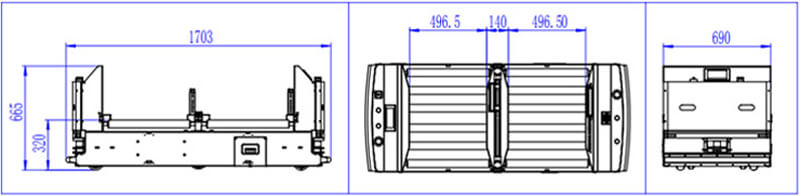

Dimension L1703*W690m
Navigation method Magnetic strip guidance
Driving speed 5-30m/min
Moving functions Move forward&backward, turn Left&right
Control unit PLC
Wireless network WIFI/RF network
Landmark type RFID
Stop Accuracy ±10mm
Maximum weight loading capacity 200KG
Charging method Offline charging/Online charging
Operation Interface Touch screen
Safety prevention Roadblock detecting sensor+machianical bumper+emergency stop button
Error warning system Tricolor light+buzzer
Applied environment Indoor;temperature:0-50℃,humidity:60-80;gradient<2

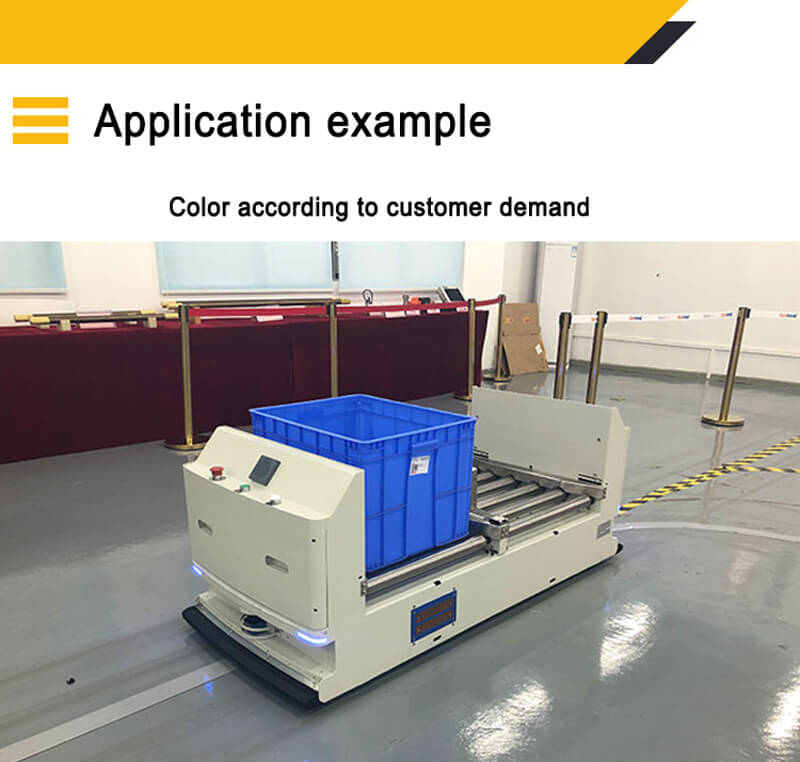

Product Application
