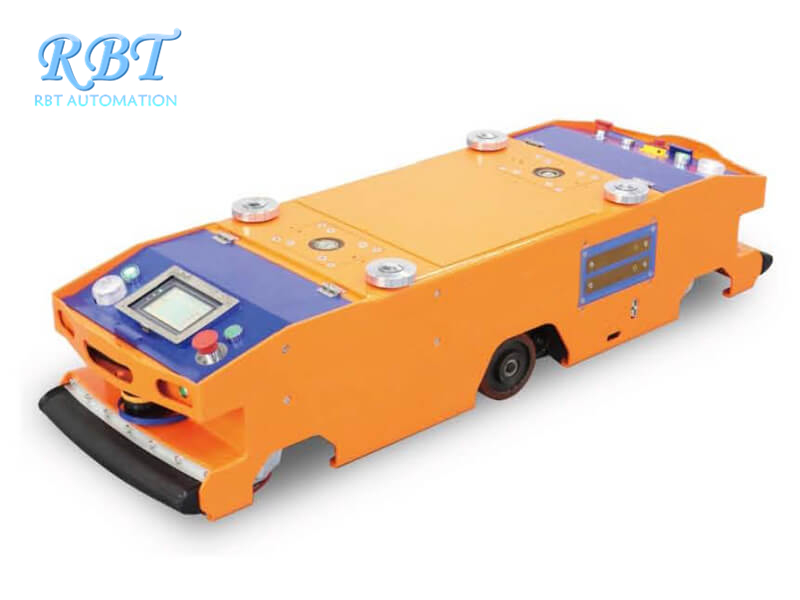

Dual-drive Bidirectional lifting type AGV

Dual-drive Bidirectional lifting type AGV

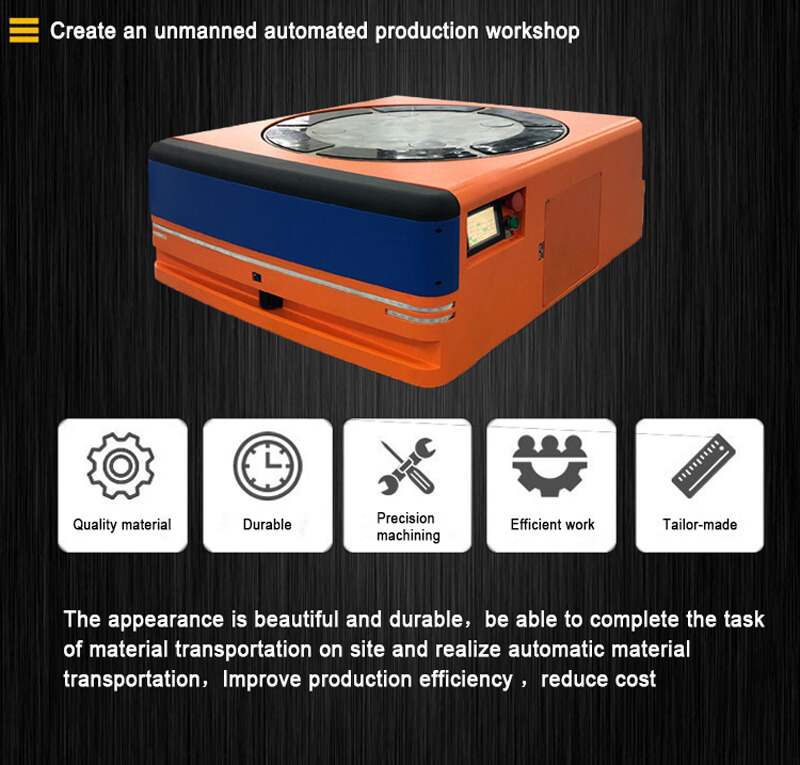

Dual-drive Bidirectional lifting type AGV made of high quality steel welded together, The appearance is beautiful and durable, be able to complete the task of material transportation on site and realize automatic material transportation,Improve production efficiency, reduce cost.



Product Introduction

Dual-drive Bidirectional lifting type AGV made of high quality steel welded together, The appearance is beautiful and durable, be able to complete the task of material transportation on site and realize automatic material transportation,Improve production efficiency, reduce cost.

Product Details


Product Paramete

Item Basic Parameters

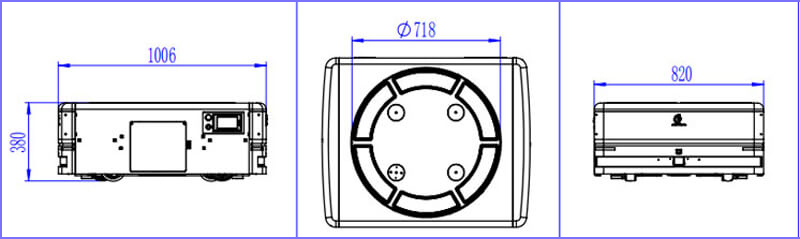

Dimension L1006mm*W820mm*H380mm
Delivery method Dual-drive Bidirectional lifting type
Navigation method Magnetic strip guidance
Drive mode rudder wheel drive
Driving speed 0-35m/min
Moving functions Move forward&backward, turn Left&right
Control unit PLC
Wireless network WIFI/RF network
Landmark type RFID
Stop Accuracy ±10mm
Maximum weight loading capacity 800KG
Power supply mode DC48V
Charging method Offline charging/Online charging
Operation Interface Touch screen

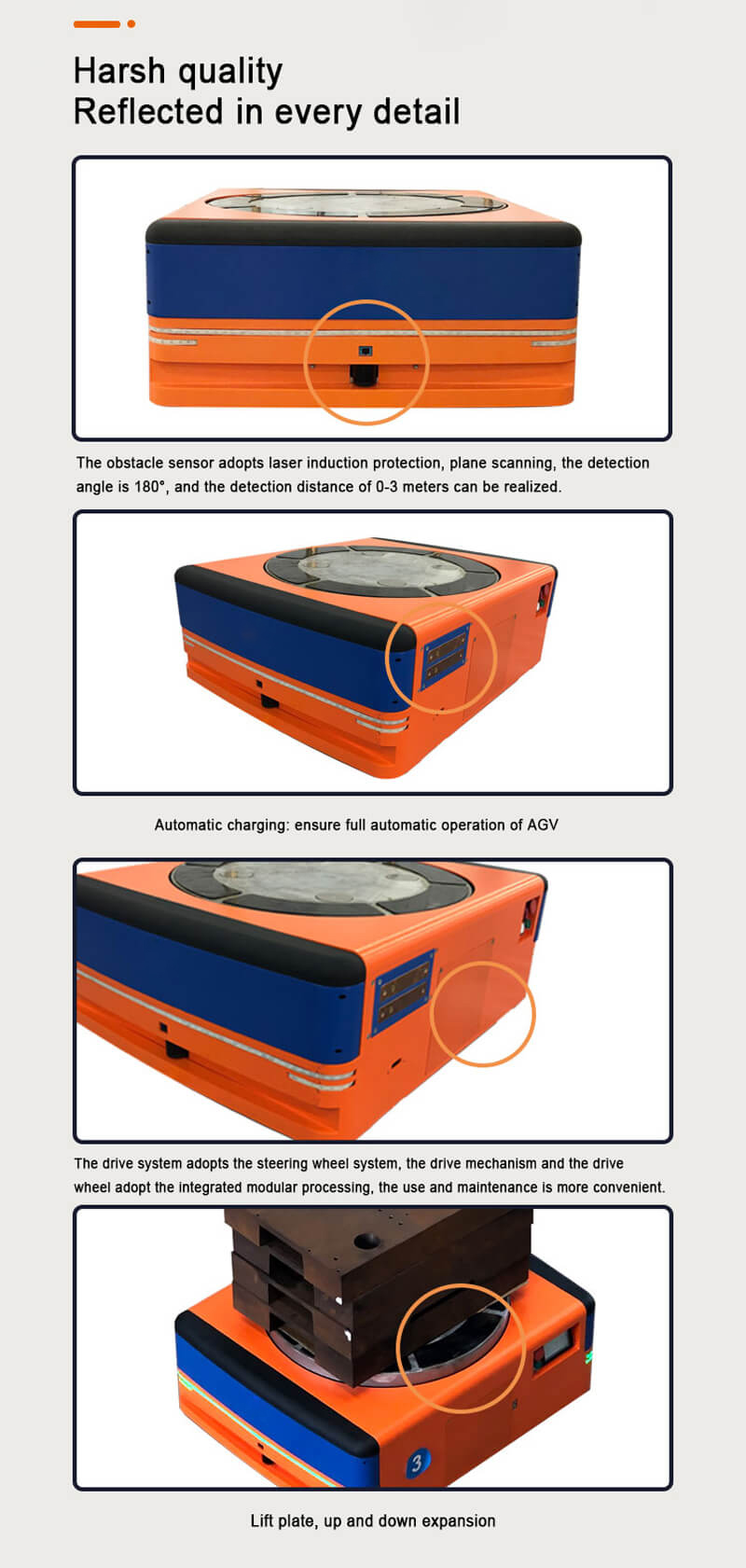

Safety prevention Roadblock detecting sensor+machianical bumper+emergency stop button
Error warning system Tricolor light+buzzer
Applied environment Indoor;temperature:0-50℃,humidity:60-80;gradient<2

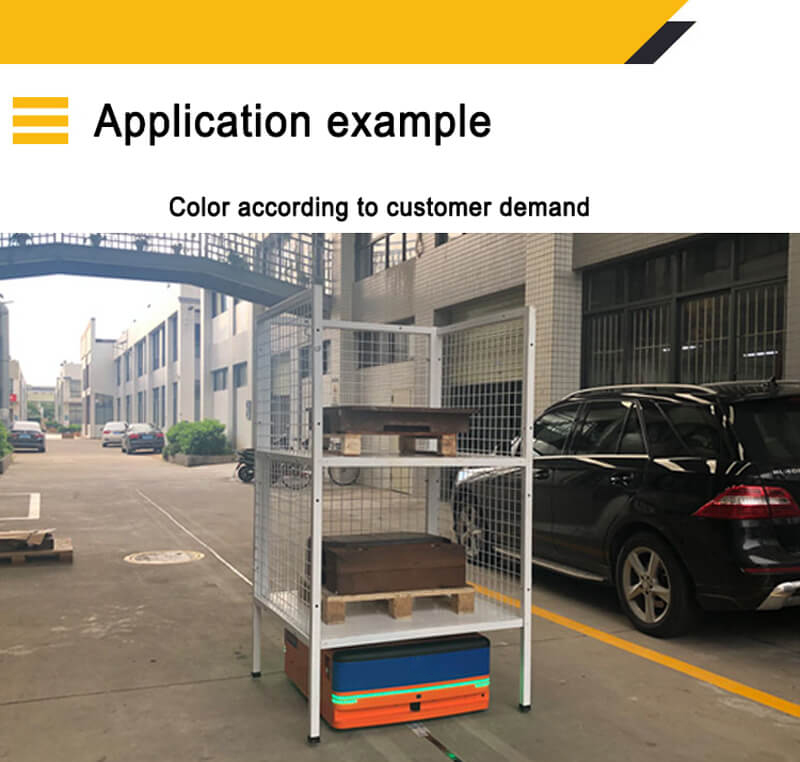

Product Application
